Mercedes-Benz Sprinter Ambulance
Type B/C emergency ambulance, manufactured by EMSDIA through an authorized Mercedes-Benz Van Partner and certified to EN 1789 + A2. Available in left-hand drive (LHD) and right-hand drive (RHD).
Key facts
- Chassis
- Mercedes-Benz Sprinter 316 / 416 / 519 CDI (diesel)
- Standard
- EN 1789 + A2, Type B/C
- Driving side
- Left-hand drive (LHD) or right-hand drive (RHD)
- Crash safety
- Cabinets, mounts and stretcher platforms tested to 10G
- Manufacturer
- EMSDIA, through an authorized Mercedes-Benz Van Partner
Left-hand drive or right-hand drive
Left-hand drive (LHD)
Factory-standard LHD layout, ready for Africa, the Middle East, Central Asia, the Balkans and Latin America. No aftermarket conversion required.
Right-hand drive (RHD)
Built as RHD from the ground up through the Mercedes-Benz Van Partner network, for the UK, Southern Africa, Southeast Asia and the Pacific Islands. Not an LHD-to-RHD conversion.
Everything else is the same in both versions: chassis, dimensions, Type B/C interior and EN 1789 + A2 certification.
Specifications
| Chassis | Mercedes-Benz Sprinter 316 / 416 / 519 CDI (diesel) |
|---|---|
| Driving side | Left-hand drive (LHD) or right-hand drive (RHD) |
| Ambulance type | Type B/C, EN 1789 + A2 |
| Length | 5,932 mm |
| Width | 2,345 mm |
| Height | 2,620 mm (without lightbars) |
| Wheelbase | 3,665 mm |
| Operating temperature | −25 °C to +55 °C |
| Oxygen | Central system, 2 × 10 L cylinders |
| Electrical | Digital control panel, pure sine wave inverter 12 V / 220 V, auxiliary gel battery, shoreline socket |
| Climate | Webasto diesel heater, rear AC unit, thermal and sound insulation |
Built for EMS work
EN 1789 certification and 10G safety
The patient compartment is designed and tested to EN 1789 + A2. All cabinetry, medical equipment mounts and stretcher platforms have passed 10G crash tests.

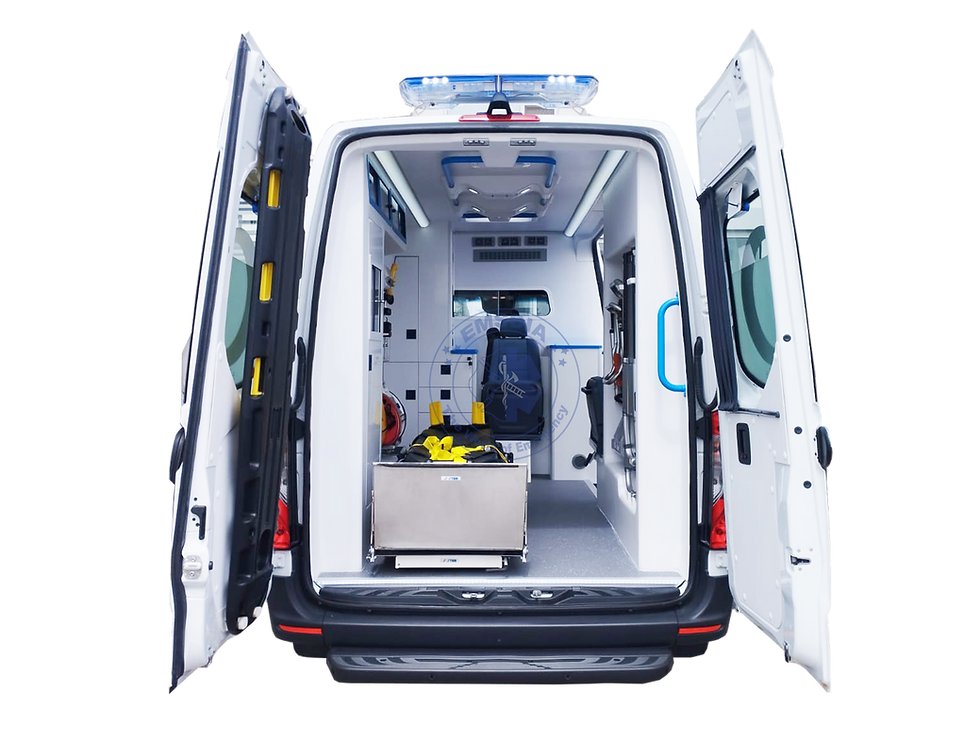

Hygienic interior and insulation
Seamless one-piece ABS or fiberglass covering: antibacterial, fire-retardant and easy to clean. High-density thermal and sound insulation between body and panels.
Electrical and climate system
Smart digital control panel for all systems, with a Webasto diesel heater and rear AC unit for extreme weather.
Medical gas and oxygen
Central oxygen system with O₂ outlets, pressure regulators and secure storage for 2 × 10 L cylinders, tested for leaks and pressure stability.
Frequently asked questions
Is the Sprinter ambulance available in right-hand drive?
Yes. The RHD version is built as right-hand drive from the ground up through the Mercedes-Benz Van Partner network, for markets such as the UK, Southern Africa, Southeast Asia and the Pacific Islands.
What is the difference between the LHD and RHD versions?
Only the driving side. Chassis, dimensions, interior and EN 1789 + A2 certification are the same.
Which Sprinter engines are available?
Sprinter 316, 416 and 519 CDI diesel.
Which standard does the ambulance meet?
EN 1789 + A2, Type B/C. Cabinets, equipment mounts and stretcher platforms are tested to 10G.
