Ambulance conversion kit
Build ambulances in your own country. We supply a complete conversion kit for the Mercedes-Benz Sprinter, Ford Transit 350L or GAZelle Next, and train your local team to assemble it.
Two EMSDIA technicians build the first vehicles together with your team and supervise your production up to the fifth vehicle. After that, your team continues on its own.
Benefits of local assembly
- Factory warranty on the vehicle. The base vehicle is bought new from your local dealer and keeps the dealer’s factory warranty and service network.
- 2-year / 50,000 km warranty on kit parts. Workmanship of the local assembly is the responsibility of the assembling company.
- One container for six ambulances. Kits for six vehicles ship in one 40 ft container instead of six finished ambulances.
- Your own service team. The technicians we train can also maintain and repair the ambulances, so your fleet stays in service longer.
- Local production in public tenders. Ambulances assembled in your country count as local production in tenders that favour it.
- Registered in your country. The base vehicle is already registered and type-approved locally; there is no import homologation of a finished ambulance.
- The right version for your market. You buy the exact driving side, engine and options your market needs from the local dealer.
- Shorter lead time and local jobs. The kits ship while you buy the vehicles, and the assembly creates skilled jobs in your country.
Key facts
- Base vehicles
- Mercedes-Benz Sprinter, Ford Transit 350L, GAZelle Next
- Supply
- One complete kit per vehicle, no partial (SKD/CKD) deliveries
- Shipment
- 6 kits per 40 ft container
- Training
- 2 EMSDIA technicians build the first 1 to 3 vehicles with your team and supervise up to the 5th vehicle
- Local assembly
- Egypt, Iraq, Azerbaijan

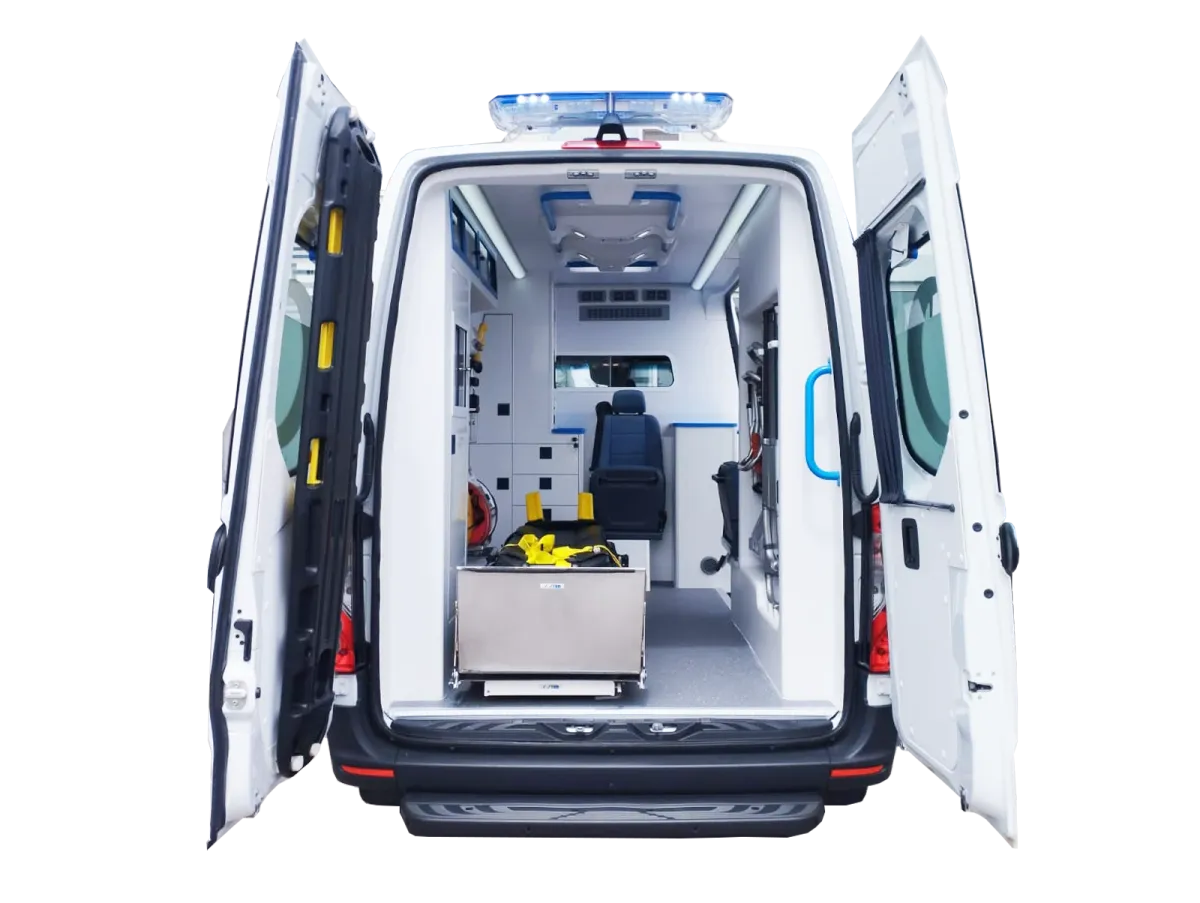

What the kit contains
Typical contents of one kit. The final list for your project is attached to our quotation.

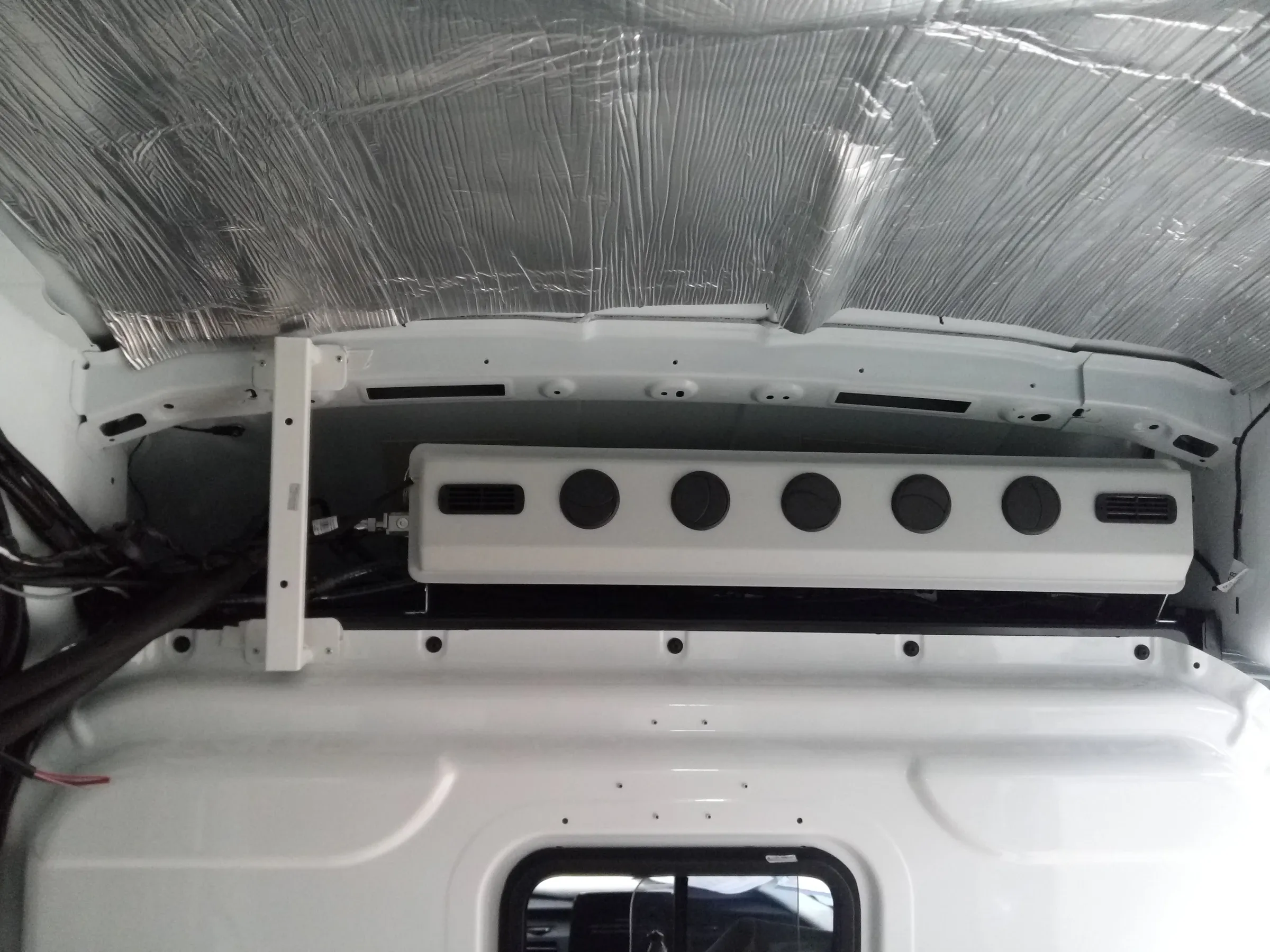

| Climate | Air conditioner for the patient compartment; turbo ventilation for air intake and extract |
|---|---|
| Warning lights and siren | Front roof lightbar with siren and PA system; rear roof lightbar; exterior warning lights on the front and sides |
| Lighting | LED fluorescent and strobe lights in the patient compartment; 4 LED projector lights for the rear and side doors |

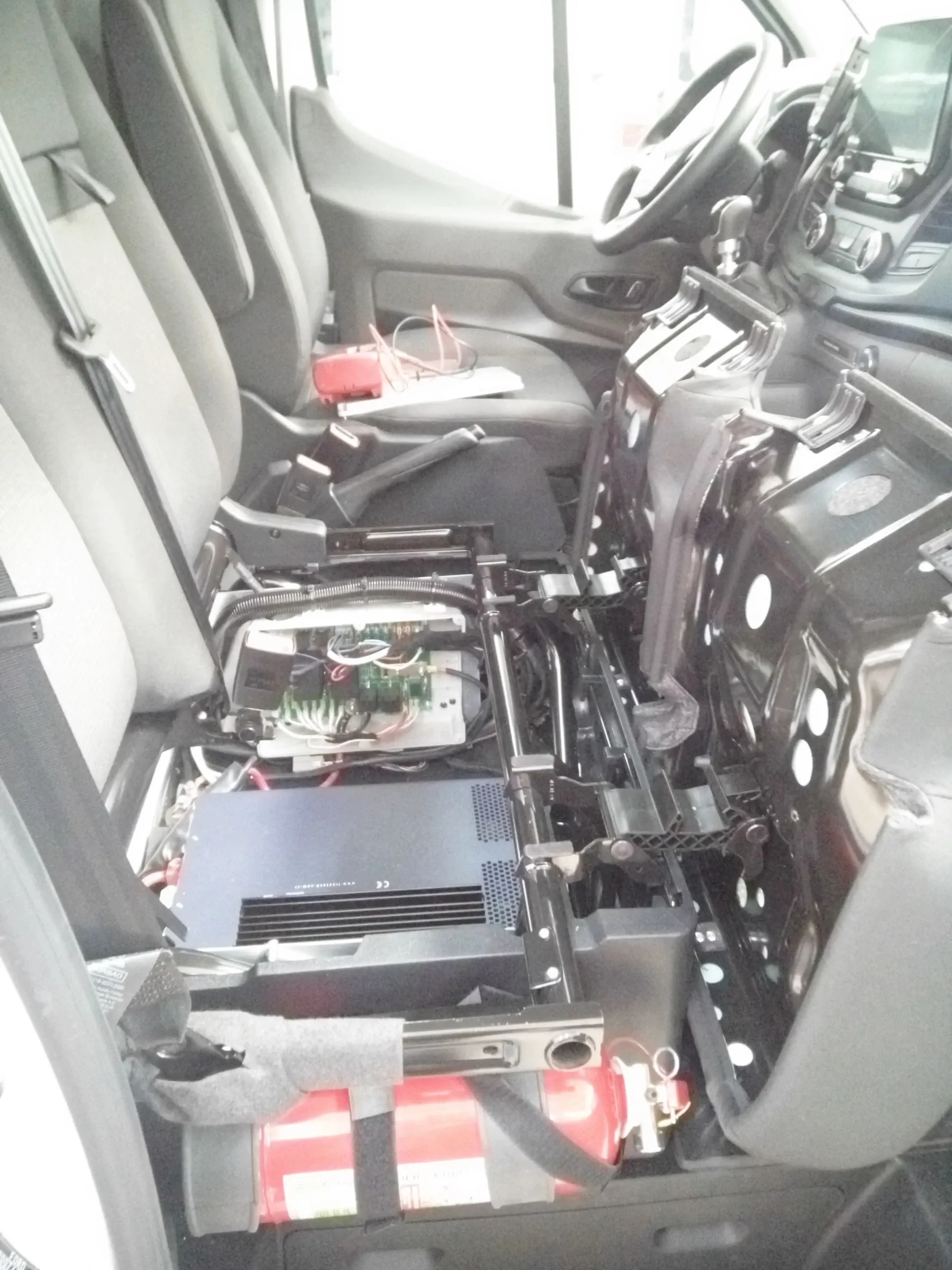

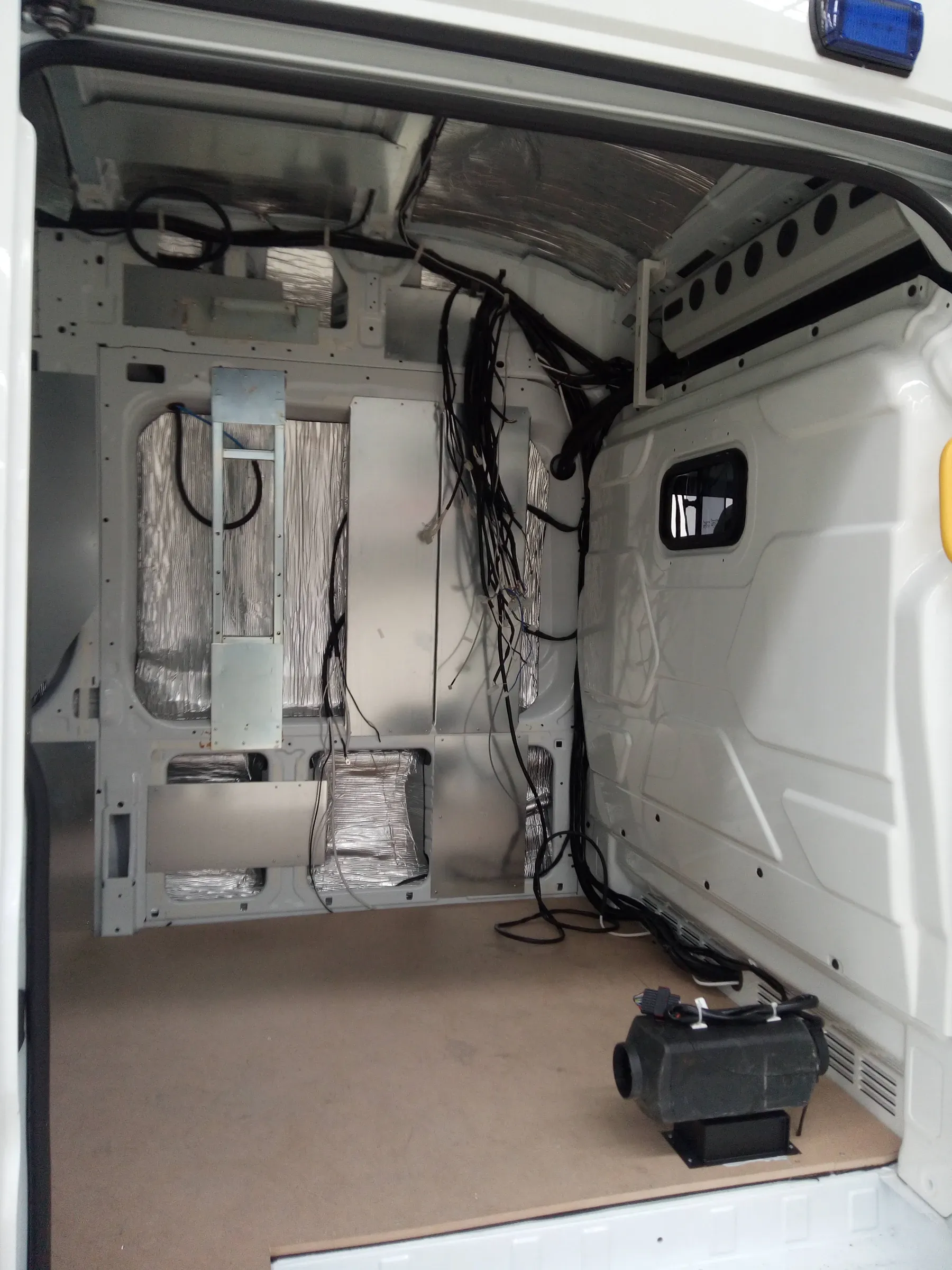

| Electrical | Control panel and complete electrical installation; 4 × 12 V outlets; 3 × 220 V outlets; 220 V exterior power connection with 6 m cable; additional 90 Ah battery; 2000 W inverter; battery charger |

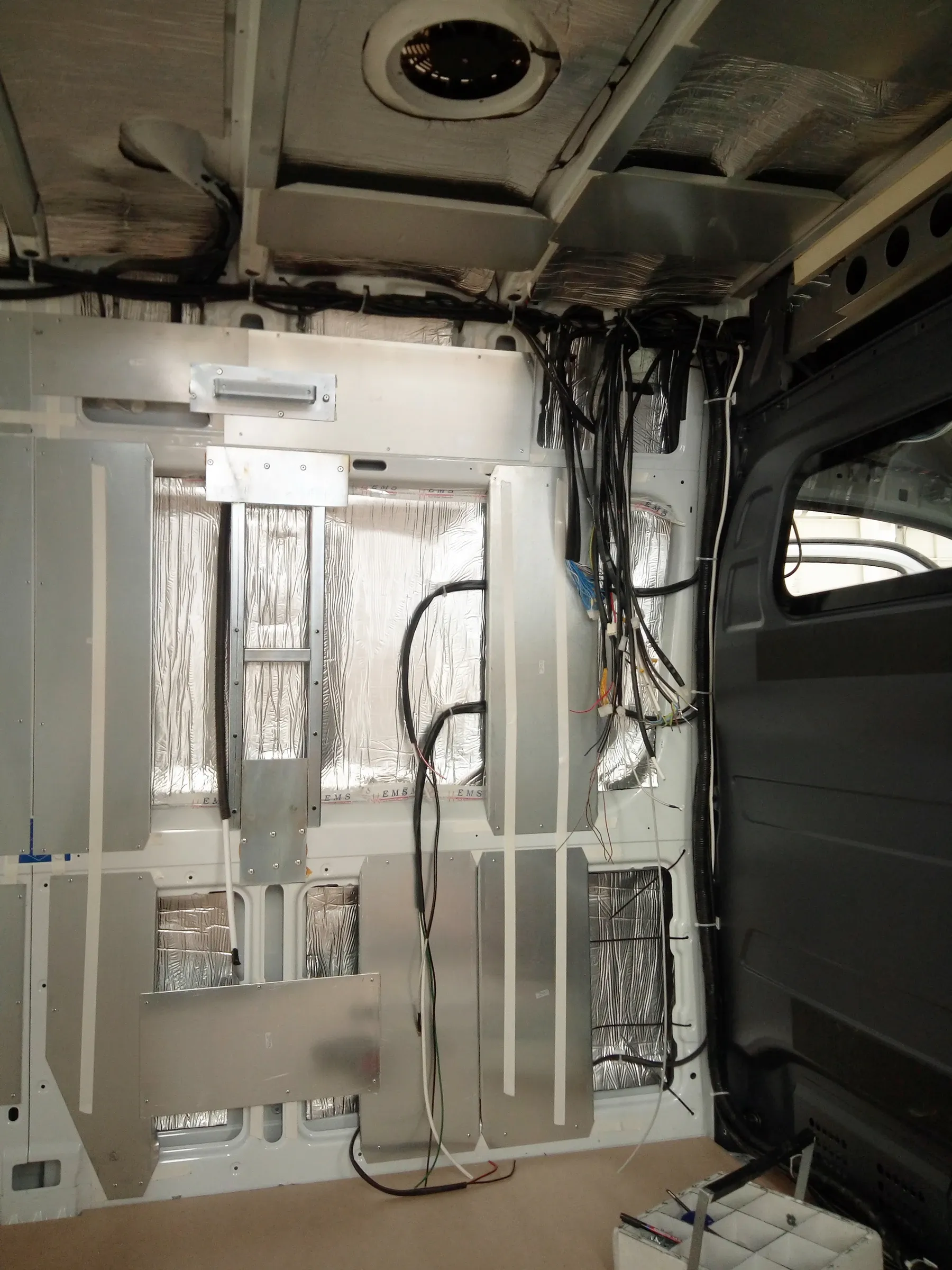

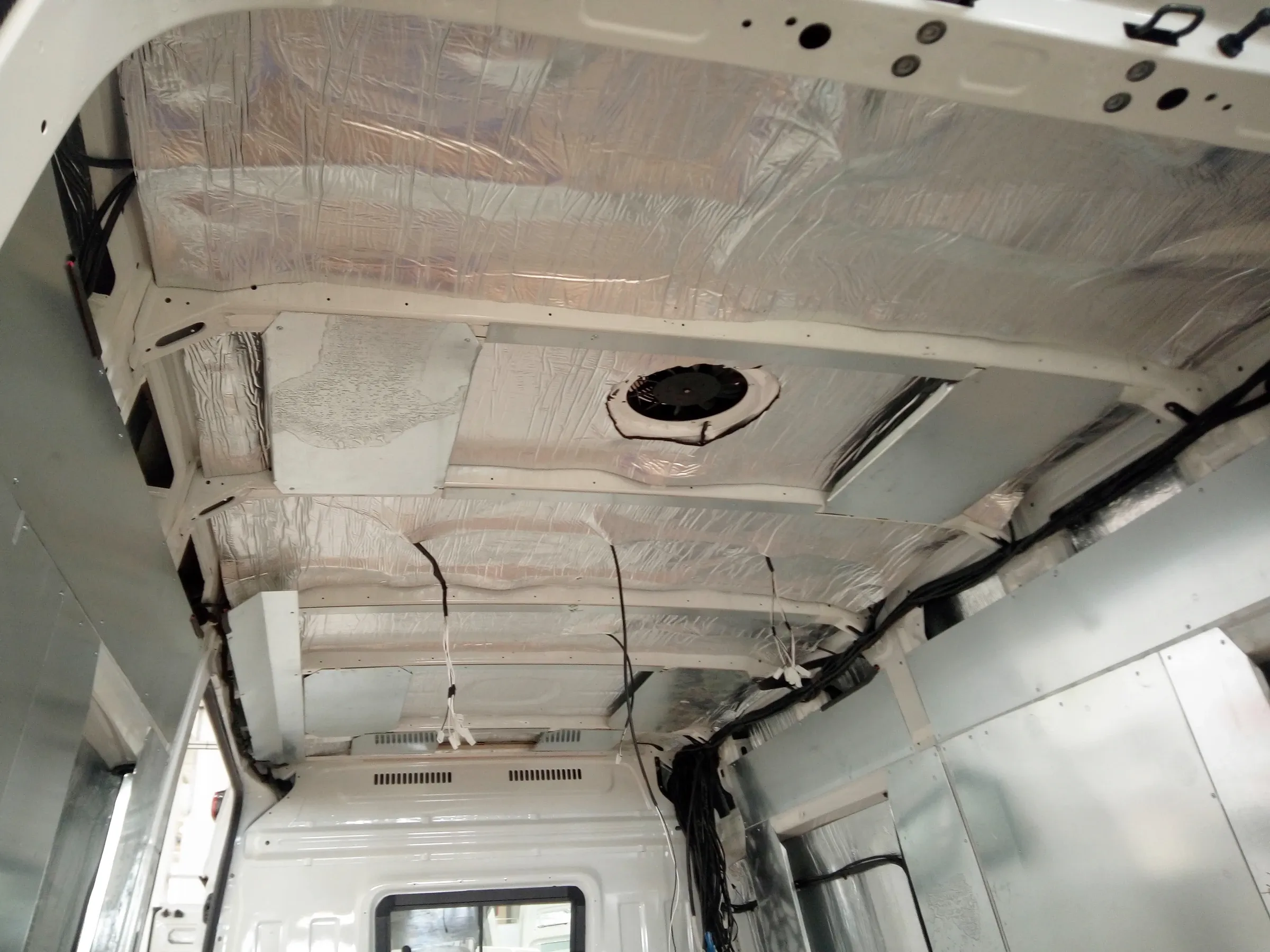

| Body interior | Insulation of walls and ceiling; anti-bacterial wall and ceiling panels; anti-bacterial PVC floor over plywood; partition wall with sliding window; cupboards and cabinets |
| Doors | Electric step for the side sliding door |
| Seats | Doctor/paramedic seat with seatbelt on the partition wall; attendant seat with seatbelt on the right wall |
| Oxygen | Oxygen delivery system with 2 × 10 L cylinders |

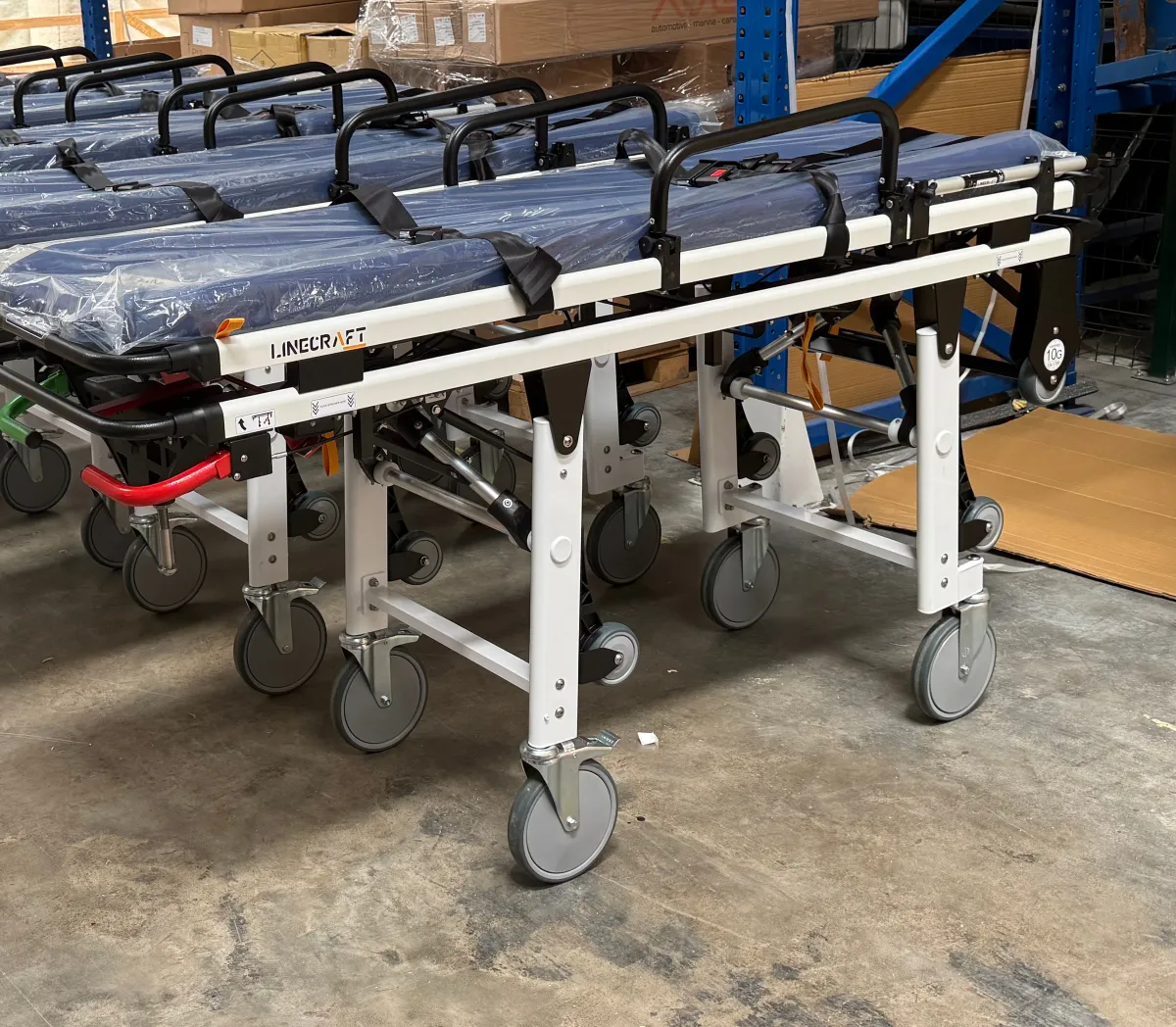

| Stretcher | Main stretcher to EN 1865; stainless steel stretcher loading platform |
| Patient care and safety | 2 foldable infusion bag holders; dustbin and sharps container; 2 × 2 kg fire extinguishers; 2 emergency exit hammers with belt cutter |
Packing and shipment

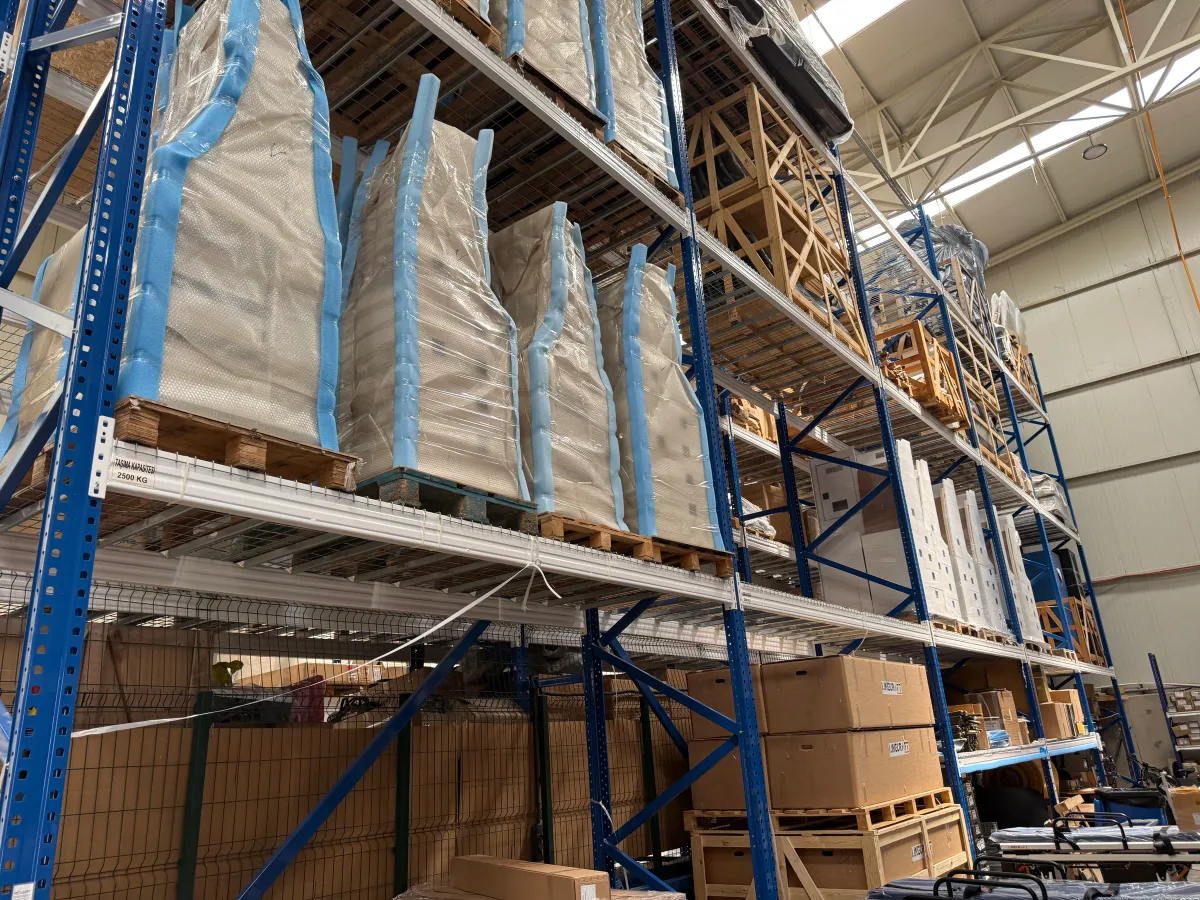

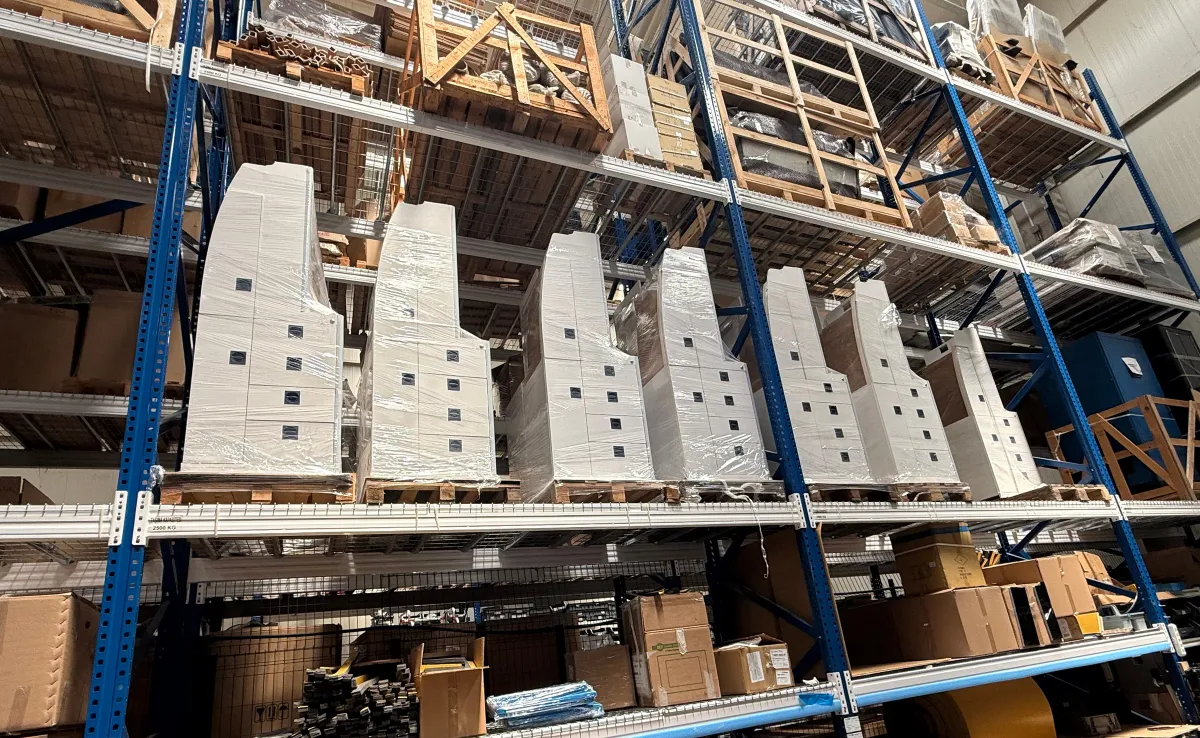

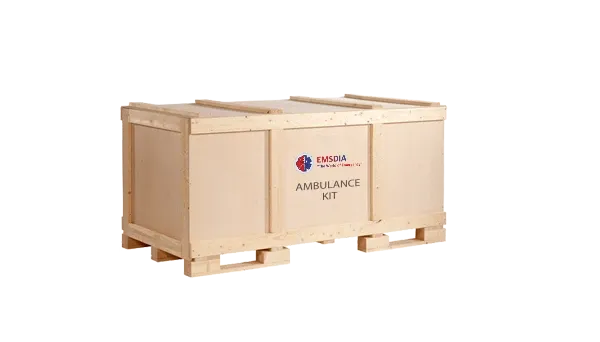

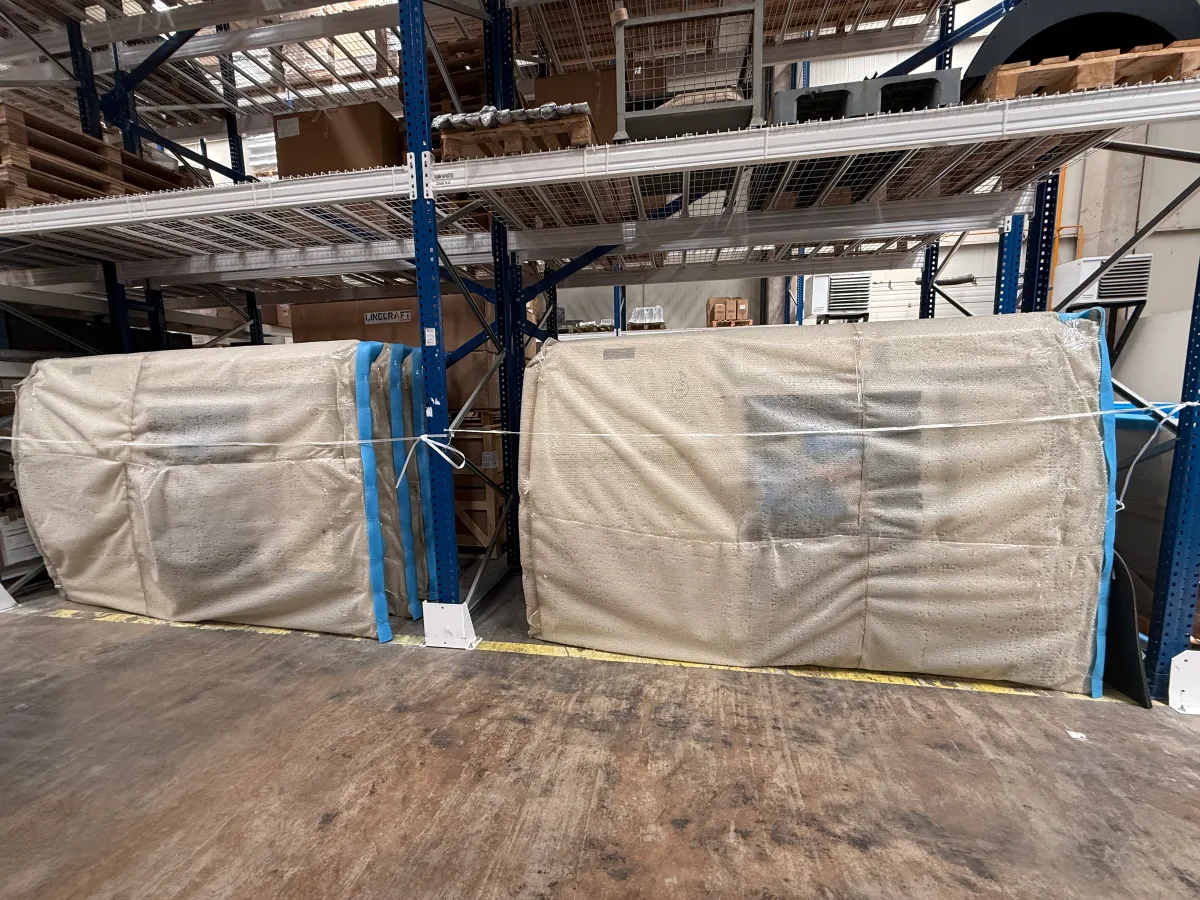

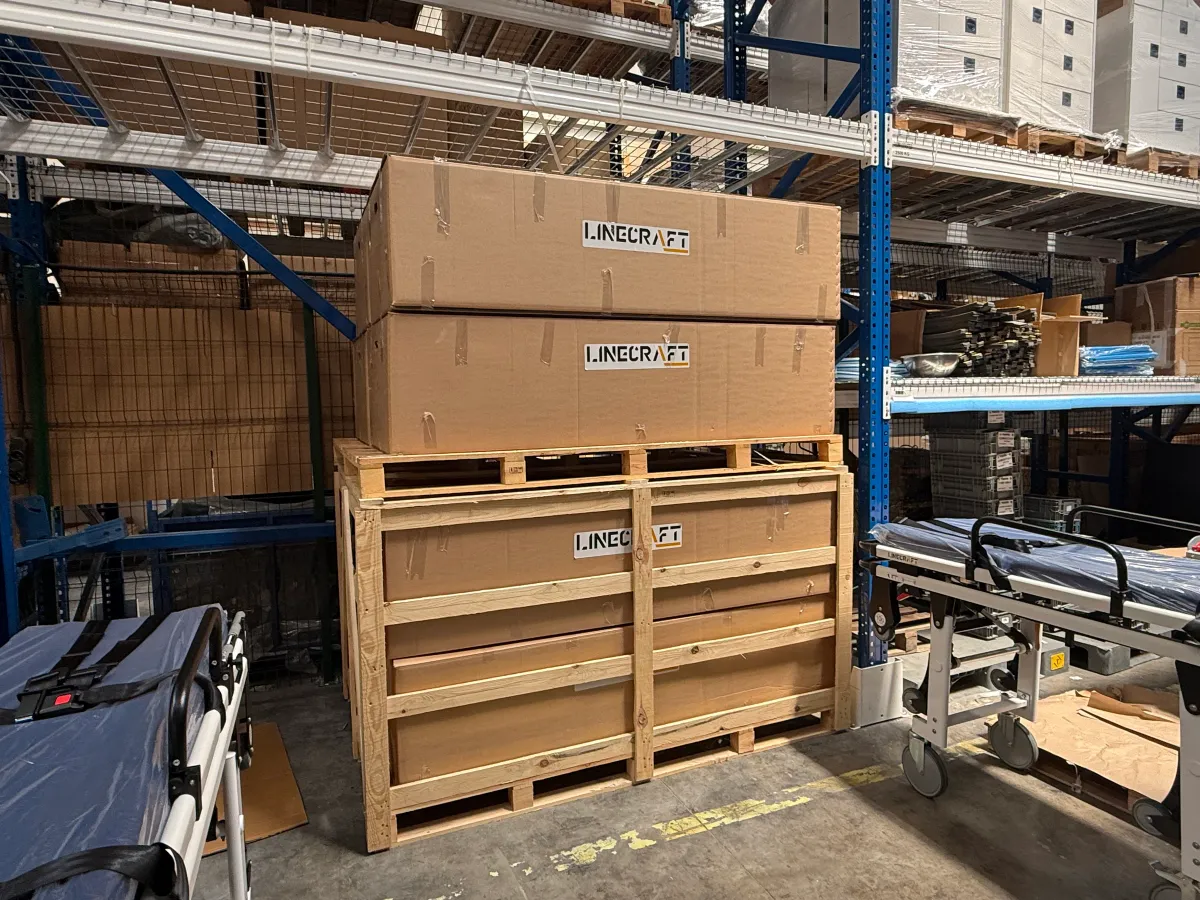

| Packing | Each kit is packed and crated on wooden pallets, so the full set for one vehicle arrives together |
|---|---|
| Container | 6 kits fit in one 40 ft container |
Local assembly with training and supervision
Your own team assembles the ambulances in your country. We train them on real vehicles and stay with them until they can continue on their own.
Consultation
We agree the base vehicle, layout and equipment list for your service.
Shipment
The kits are crated and shipped, six per 40 ft container.
Demo assembly
Two EMSDIA technicians build the first 1 to 3 vehicles together with your team.
Supervision
Your team assembles the next vehicles under our supervision, up to the fifth vehicle in total.
Own production
Your team continues the assembly on its own.
What you provide
- The base vehicles
- A covered assembly area of at least 200 m², with mains electricity and climate control (cooling in hot weather, heating in cold weather)
- The local assembly team to be trained
Where kits have been assembled
Egypt, Iraq and Azerbaijan.
Frequently asked questions
Which vehicles does the conversion kit fit?
Mercedes-Benz Sprinter, Ford Transit 350L and GAZelle Next.
Is the base vehicle included?
No. The customer provides the base vehicles; the kit covers the conversion.
Can I order only part of the kit (SKD or CKD)?
No. We supply the conversion kit as one complete set per vehicle.
Who assembles the kit?
Your local team. Two EMSDIA technicians train them by building the first 1 to 3 vehicles together, then supervise them up to the fifth vehicle in total.
What warranty applies?
The base vehicle keeps the factory warranty of your local dealer. EMSDIA kit parts carry a 2-year / 50,000 km warranty. Workmanship of the local assembly is the responsibility of the assembling company.
Can the kit contents be changed?
Yes. The list on this page is a typical kit for one ambulance; the final list for your project is attached to our quotation.
How many kits fit in a container?
Six kits fit in one 40 ft container.
What do we need for the assembly?
The base vehicles, the team to be trained and a covered assembly area of at least 200 m² with mains electricity and climate control.
In which countries have kits been assembled?
Egypt, Iraq and Azerbaijan.
Fully built ambulances on the same base vehicles: Mercedes-Benz Sprinter ambulance, Ford Transit ambulance, GAZelle ambulance. All models: Ambulances.
